Internal Groove Caliper with Flat Points
,Digital Internal Groove Caliper
,Internal Groove Caliper
-
보증1 년
-
측정메트릭/인치
-
제품 유형내부 그루브 및 보어 측정
-
턱 타입나이프 에지 턱
-
모루 디자인중앙 그루브
-
슬라이더 메커니즘부드러운 글라이딩 액션
-
재료스테인레스 스틸
-
디스플레이 유형디지털 LCD 디스플레이
-
액세서리 포함사용자 설명서
-
패키지ABS 케이스
-
원래 장소Shaanxi, 중국
-
브랜드 이름KM
-
인증ISO DIN GB RoHS
-
모델 번호KM-DIGF-150
-
포장 세부 사항알루미늄 케이스 35*17*5cm/조각 0.66kg/조각
-
배달 시간15 일 이내에
-
지불 조건T/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
공급 능력50000 피스/월

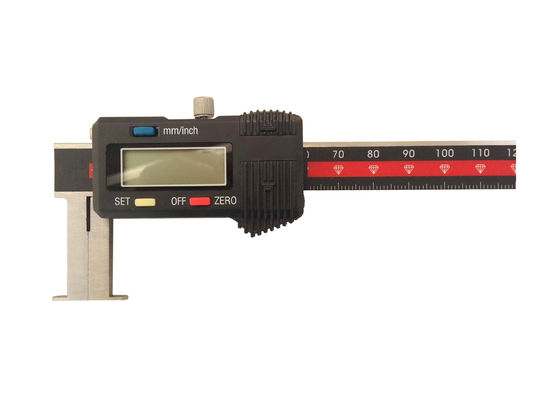

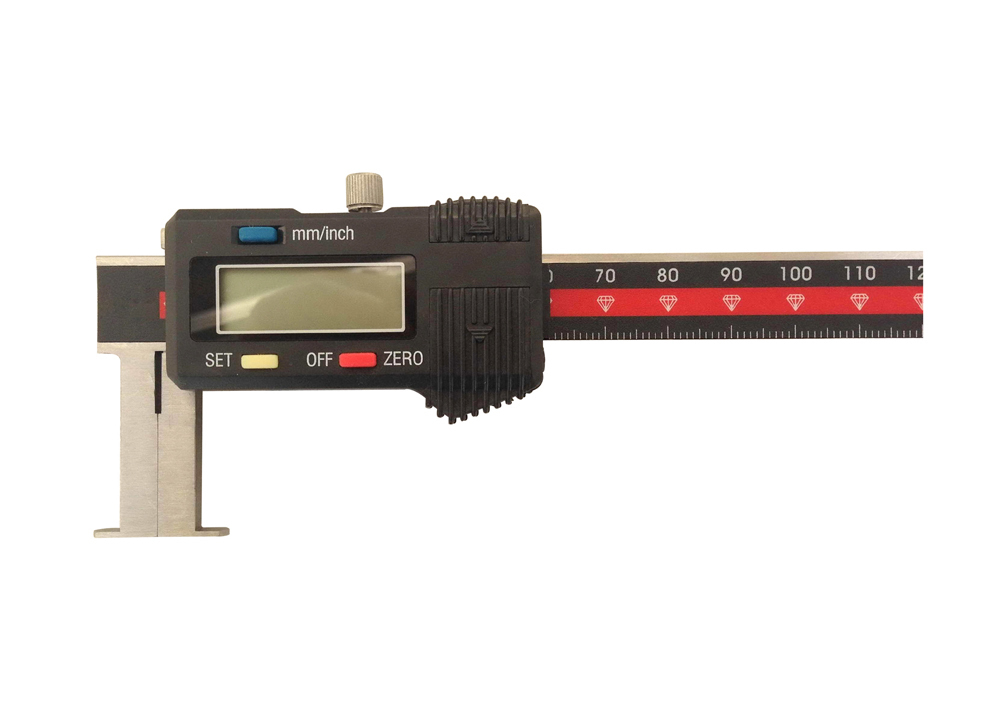

Digital Inside Groove Caliper with Flat Points for Internal Groove Measurement
Digital Inside Groove Caliper with Flat Points for Internal Groove Measurement
Product Description
Digital inside groove caliper features specialty jaws that project straight and parallel to each other for measuring narrow inside grooves.
The hardened stainless-steel construction provides excellent durability
Large LCD display that displays the measurement results for easy reading and provides instant metric/imperial conversion
and zero-setting at any position. Digital inside groove caliper with the flat contact points, which enable precise measurement of groove
bottom surfaces.
Key Features
- Resolution: 0.01mm (Metric); 0.0005" (Inch).
- Flat anvil design for measuring narrow grooves in holes.
- Clear LCD display for easy reading.
- Inch/metric conversion capability.
- Power on/off function.
- Zero setting at any position.
- Includes protective case.
Technical Specifications
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-DIGF-150 | 22-150mm/0.86-6" | 0.01mm/0.0005" | ±0.04mm |
| KM-DIGF-150-1 | 35-150mm/1.4-6" | 0.01mm/0.0005" | ±0.05mm |
| KM-DIGF-200 | 25-200mm/1-8" | 0.01mm/0.0005" | ±0.04mm |
| KM-DIGF-200-1 | 40-200mm/1.6-8" | 0.01mm/0.0005" | ±0.05mm |
| KM-DIGF-300 | 30-300mm/1.2-12" | 0.01mm/0.0005" | ±0.05mm |
| KM-DIGF-300-1 | 50-300mm/2-12" | 0.01mm/0.0005" | ±0.06mm |
| KM-DIGF-500 | 40-500mm/1.6-20" | 0.01mm/0.0005" | ±0.06mm |
| KM-DIGF-500-1 | 60-500mm/2.4-20" | 0.01mm/0.0005" | ±0.07mm |
| KM-DIGF-500-2 | 80-500mm/3.2-20" | 0.01mm/0.0005" | ±0.07mm |
Industrial Applications
This digital inside groove micrometer is designed for internal groove measurement applications across multiple industries.
Its unique flat-point design enables accurate measurement of groove widths, depths, and internal diameters in various machining components,
making it essential for quality control and production verification.
- Machining & Manufacturing: Precise measurement of internal grooves in turned parts, bored components, and machined workpieces.
- Automotive Engineering: Inspection of piston ring grooves, valve guide grooves, and transmission component grooves.
- Bearing Production: Verification of bearing raceway grooves and retaining ring grooves.
Usage Precautions
- Ensure the measured groove and caliper jaws are clean before use.
- Do not force the caliper into grooves smaller than its minimum measuring range.
- Clean measuring surfaces regularly with a soft, lint-free cloth.
- Avoid using solvents or abrasive cleaners that may damage the LCD or scale.
Frequently Asked Questions
Who are we?
Deko Corporation is primarily dedicated to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, etc.
What are the terms of trade?
We support FOB, CFR, CIF, EXW.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
Do we accept customization?
Yes, OEM is available.
How about after-sales service?
One year warranty for all products. If you find any defective accessories when receiving goods, we will ship replacement parts or products.
As an experienced manufacturer, we have strict calibration and inspection processes to ensure product quality.
