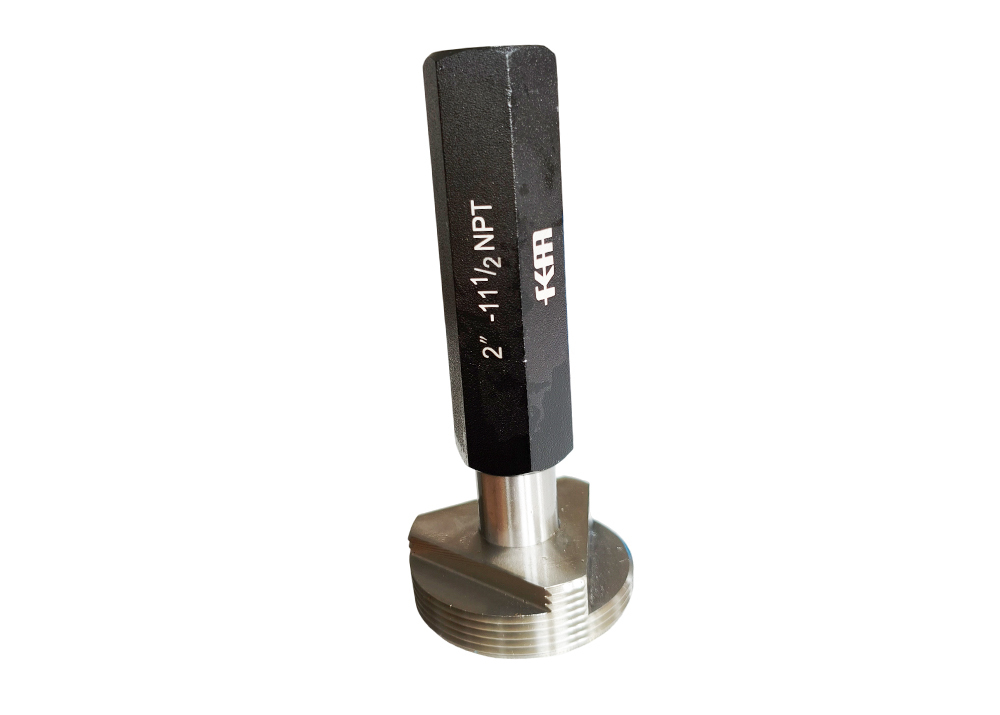

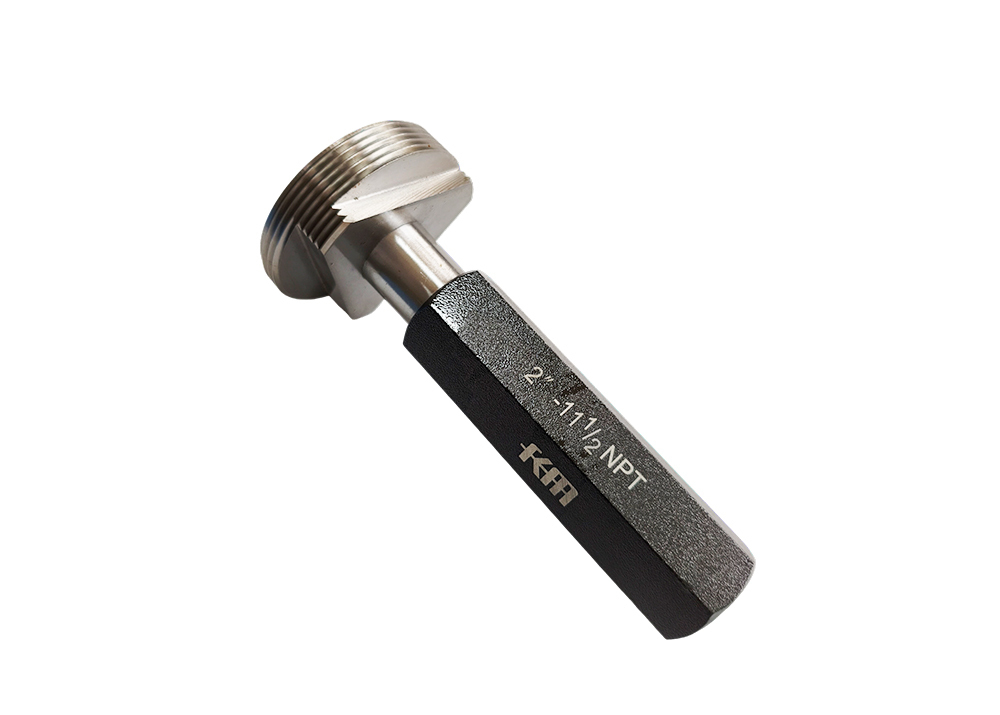

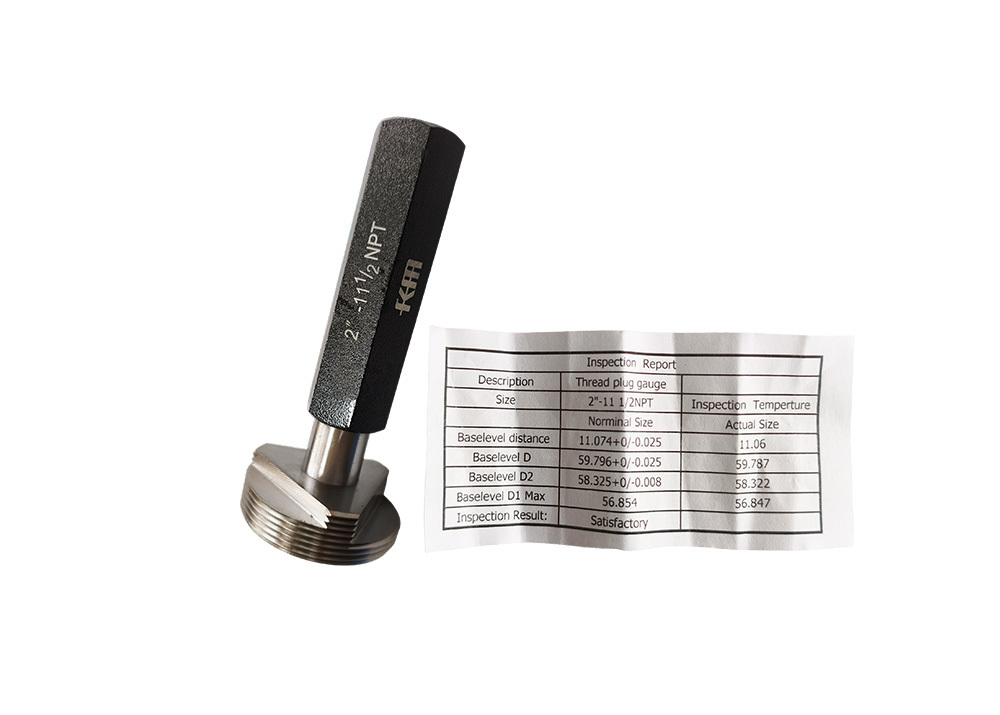

High Quality 2"-11.5 NPT Taper Pipe Thread Plug Gauge Go Nogo Design for Quick Verification

High Quality 2"-11.5 NPT Taper Pipe Thread Plug Gauge Go Nogo Design for Quick Verification

Description:

NPT thread plug gauge is mainly used to measure the internal threads and ensure that the threads meet the specified

standards and NPT thread plug gauge is an important tool to check whether the internal thread meets the American standard

sealing tapered pipe threads (NPT).

NPTF is utilized as a dry seal while NPT thread plug gauge needs some kind of sealing medium to prevent leaks.

Deko Corp provides a complete line of taper pipe thread gauges, available with sizes from 1/16-27NPT to 6-8NPT

and sizes from 1/16-27NPTF to 6-8NPTF as per National (American) Standard Pipe Taper Threads specification.

The specifications of pipe threads are composed of the thread code (NPT) and the thread size code. For left-hand threads,

please mark "-LH" in the specification. For example, NPT 1/2; NPT 1/2 LH.

Taper Pipe Threads are one of the more challenging threads to produce and measure.

We introduced internal first grade thread machining center and measuring equipment, NPT general purpose pipe thread plug

and ring gages are manufactured per ANSI.

Quick Detail:

1. GO and NO GO and combination GO/NOGO types.

2. Conform standard: FED-STD-H28/8.7.

3. Material GCR15.

4. Wear resistance and corrosion resistance, stable structure, easy to use.

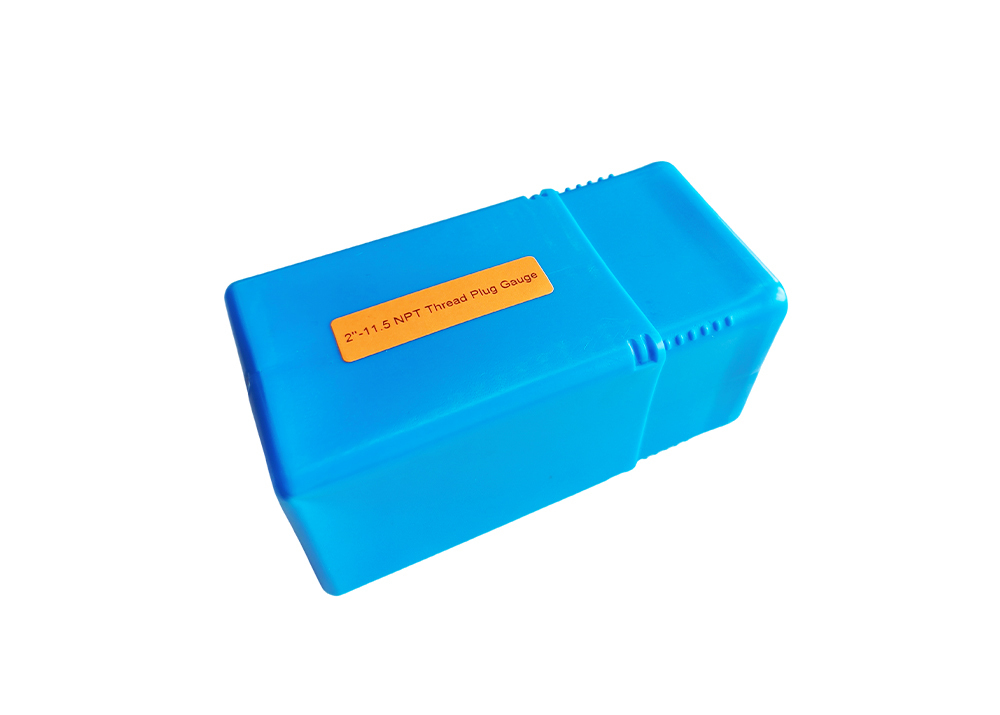

5. Supplied in fitted case.

Specification:

Applications:

NPT national (American) pipe thread plug gauges are widely used in the fields of automobile manufacturing, aerospace,

machining and electronic processing for inspecting various standard and non-standard thread products to improve the accuracy

of thread accuracy and ensure the qualified rate of manufactured products.

Precautions:

1.During use, avoid using the gauge for non-gauge inspection, because there are functional sharp parts in the corners

   of the thread and gauge part, which is easy to cause injury to the operator. When inspecting, make sure the product

   or gauge is at state of rest.

2. Before use, the gauge and product should be cleaned with oil, or wiped with a clean cloth to confirm that the gauge

    is free of rust, scratches, burrs, etc

3.When storing the gauge, dust, chips, etc. should be removed first to prevent rust. Store the gauge in a place where

   there is no moisture and the temperature does not change much, and check it regularly.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
