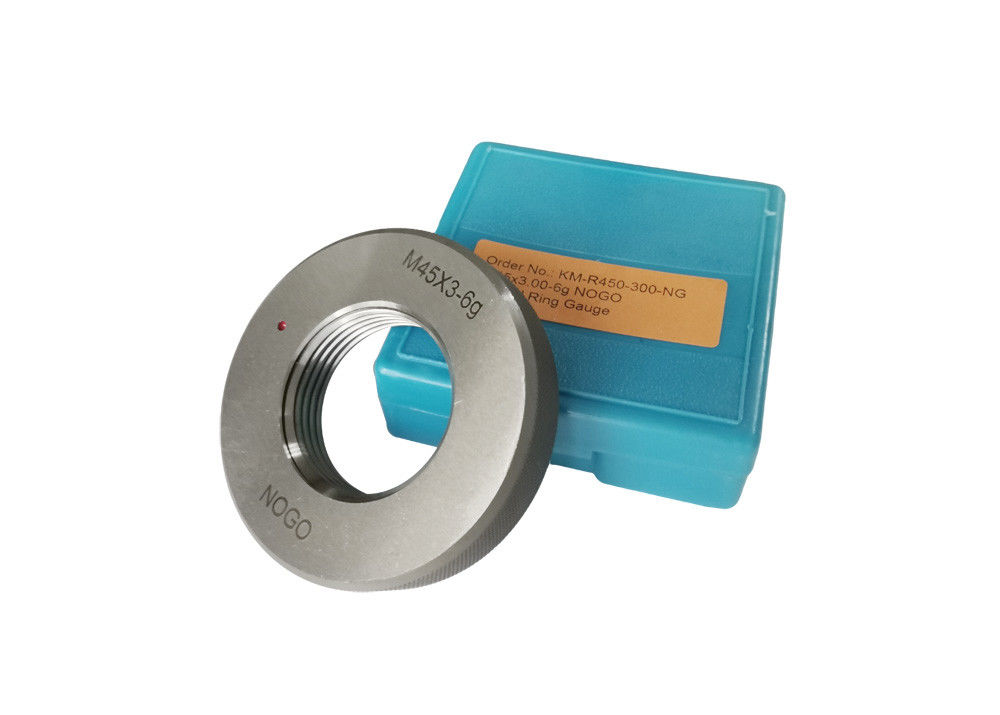

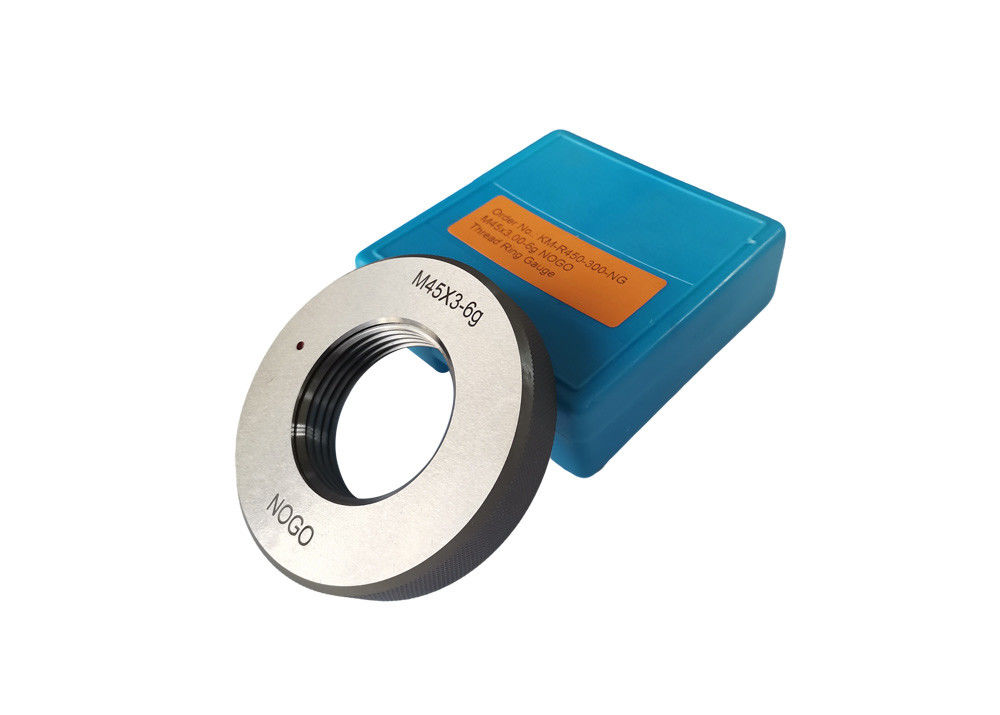

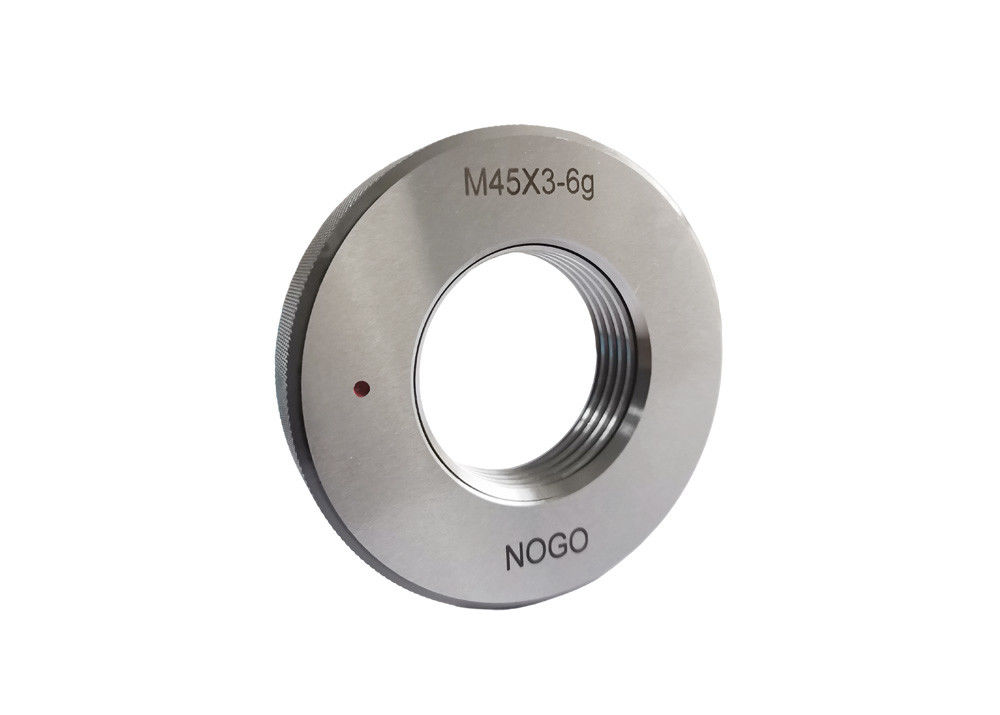

Steel Construction Thread Ring Gauge M45x3.00 for Industrial Applications

Fine Pitch Metric Thread Ring Gauge M45x3.00 Steel Construction for Industrial Application

Description:

Metric thread ring gauges are precision inspection tools that used for checking the thread of outside diameter on screws,

bolts and threaded rods, usually have normal accuracy includes 6g,6h,7g,7h,8g,8h, etc.

Thread ring gauges come in GO and NOGO types, the GO ring gauge is machined to a minus tolerance making it

so the member is at the maximum material limit and used for verification of an externally threaded component.

The NOGO thread ring gauge is machined to a plus tolerance making it so the member is at the minimum material limit

and used for verification of an externally threaded component.

We introduced internal first grade thread machining center and measuring equipment, in order to provide high precision

thread ring gauges to customers worldwide.

Quick Detail:

1. Metric thread ring gauge.

2. Accuracy: 6g,6h,7g,7h,8g,8h,etc.

3. GO and NO GO types.

4. Conform standard: DIN13, DIN2280-89.

5. Wear resistance and corrosion resistance, stable structure, easy to use.

6. Supplied in fitted case.

Specification:

Precautions:

1. It is not allowed to touch the working surface of the plug ring gauge with your hands, so as not to cause rust.

2. During use, the plug ring gauge should be placed in an appropriate place, such as on the table of the tool cabinet

    or on the wooden backing plate of the immovable part of the machine, and should not be placed on the tool holder

    of the machine or the guide rail of the machine, so as not to cause damage.

3. Inspect regularly to see if there is any damage, rust or deformation. If you find that the plug ring gauge begins to rust,

    you should put it in gasoline and soak it for a period of time, then take it out and wipe it carefully, and apply anti-rust oil.

4. Do not save the working surfaces of the two plug ring gauges together, otherwise the two working surfaces will be glued

    to each other, and the gauge will be unnecessarily damaged when separated by external force.

5. After used the threaded plug ring gauge, it should be wiped clean and stored under dry condition.

Applications:

The threaded ring gauge is mainly used to measure the diameter and pitch of the thread, which has the advantages of high

precision,wide measurement range and simple operation, and is widely used in machinery manufacturing, aerospace,

automobile manufacturing and other fields.
